Home > Products > Materials > Filter Materials

Aluminum Frame carbon air filter

FOB Price:

US 1-3 / Square Meter

Min.Order Quantity:

1000 Set/Sets

Supply Ability:

10000 Square per Meter/Square

Port:

qingdao

Place of Origin:

Shandong, China (Mainland)

Payment Terms:

L/C,T/T

Brand:

AOBO

Products Model:

AB233

Products Details
Company Profile

Quick Details

Brand Name: AOBO

Model Number: AB233

Place of Origin: Shandong, China (Mainland)

Packaging & Delivery

Packaging Details: Carton Or packing according to the requirements
Delivery Detail: no more than15 working days after receiving 30% deposit

Specifications

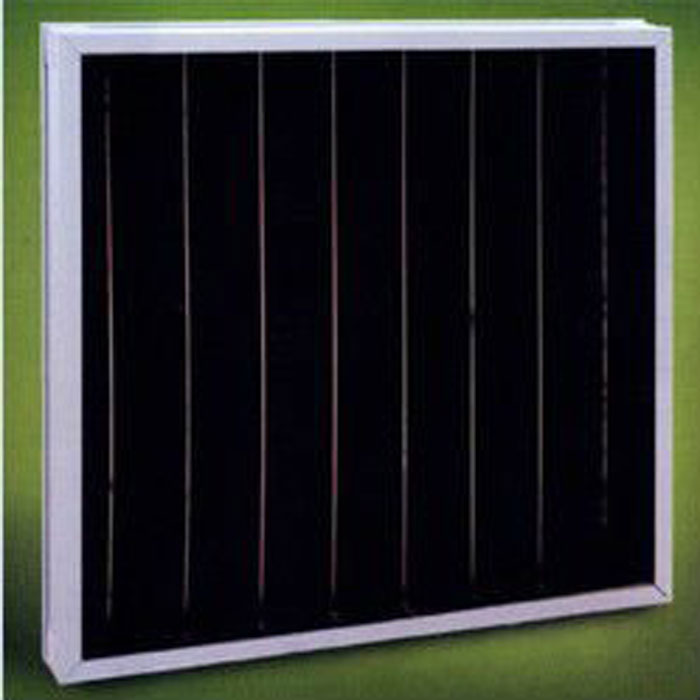

Aluminum Frame carbon air filter.
Low initial pressure drop
Rechargeable
Wide range of type

Aluminum Frame Activated carbon filter

Type…………………………...…pleated panel filter

Frame……………………..……. galvanized steel or aluminium

Filter media…………………….. activated carbon particles or synthetic media saturated with carbon

Grids…………….…………….... aluminium mesh, galvanized steel mesh

EN 779 Class……….………G3-G4

Average arrestance………... 80%-94%(ASHRAE 52.1-1992)

MERV………………………..…..MERV 5-8(ASHRAE 52.2-1999)

Benzene absorption……….……..≥800 mg/g(particles),≥200 mg/g(fibers)

Carbon content…………………..≥50%

Final pressure drop……………..(recommender) 250Pa(fibers)- 600Pa(particles)

Max. air flow rate..……………...125% of nominal air flow rate

Max. operating temperature……60°C

Max. relative humidity………..…80%

Type	Media	Dimensions			Filtering surface (m2)	Rated air flow (m3/h)	Initial pressure drop(Pa)
Type	Media	Length (mm)	Height (mm)	Depth (mm)	Filtering surface (m2)	Rated air flow (m3/h)	Initial pressure drop(Pa)
AC-KL	Activated Carbon Particles	500	500	25	0.25	1000	50
		500	500	45	0.25	1500	100
		600	600	45	0.36	2000	120
AC-XW	Activated Carbon Fiber	500	500	25	0.25	1000	120
		500	500	45	0.70	2000	90
		500	500	90	1.44	3000	90
		600	600	25	0.36	1000	80
		600	600	45	1.10	2500	90
		600	600	90	2.20	3500	90
